Pulping System, pulp preparetaion system

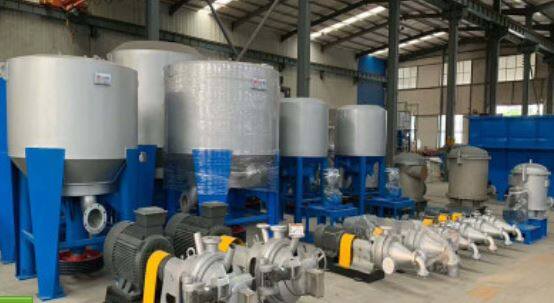

Pulping system

It has high efficiency, low energy consumption, good pulping effect, simple operation and convenient maintenance.

Packing method: export standard packing

 Energy-saving pulper, vibrating screen, energy-saving double-disc refiner, high-frequency decompressor, gear refiner, pulp pump, agitator, sand removal system, Conventional equipment such as fine screening system.



Our company's  pulping  system for pulp molding industry are:

    1. Energy-saving pulper, vibrating screen, energy-saving double-disc refiner, high-frequency deflaker, gear refiner, pulp pump, agitator, sand removal system, Conventional equipment such as fine screening system.

    2. There are also high-speed pulpers and high-frequency disintegrators for sluice and corner waste, defective products, which can effectively shorten the beating time, improve work efficiency, and thus reduce energy consumption.

    3. The paper-plastic separation system used to deal with the lamination products, specially dealing with the paper-plastic separation of lamination products and the recycling of defective products and scraps.

    4. For the Industrial packaging industry, invented the use of branches, bamboo, bagasse, wheat straw, straw.

    5. Sewage treatment system in the pulp molding industry:

First, there is a fiber recovery system, which can not only recover lost fibers, but also Reduce the cost of water treatment and improve the effect of water treatment.

    Second, there is an advanced automatic air flotation system, which can clear the colored and fiber-containing wastewater, and the water can be recycled, thereby reducing water consumption and solving water pollution pollution. environmental issues.

    6. In the pulp tableware industry and the high quality packaging industry, the water quality of tap water or groundwater can be softened to prevent the hardness of the raw water from being too high and scaling for a long time, causing the surface of the mold and product to be uneven.

china fine pulp molding machine

pulp molding machine  pulp molding machine for sale

china fine pulp molding machine  china fine pulp molding machine supplier

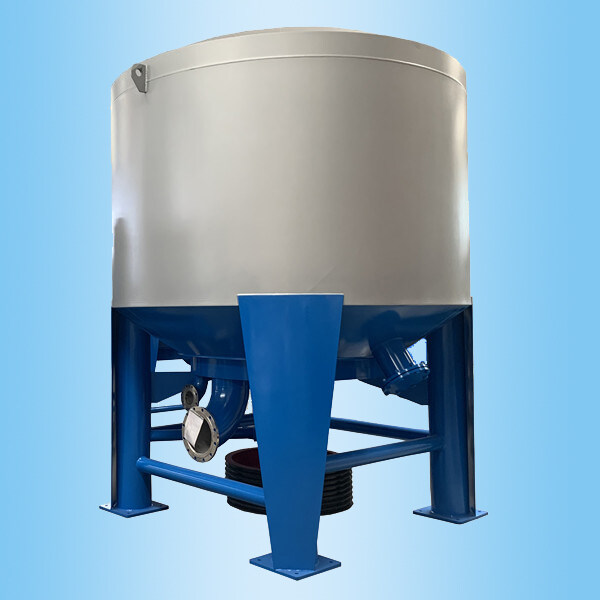

1 Vertical high, medium and low consistency hydraulic pulper

The hydraulic pulper is the equipment used in the pulp molding industry to disintegrate pulp board, waste paper,etc. It is the mechanical action of the turntable blades in the tank and the shredding effect introduced by the rotation of the turntable to drive the propulsion of the medium-concentration stirring cage to achieve the purpose of crushing and dispersing.

At present, our newly developed energy-saving pulper can double the output under the premise of the same volume and the same power.

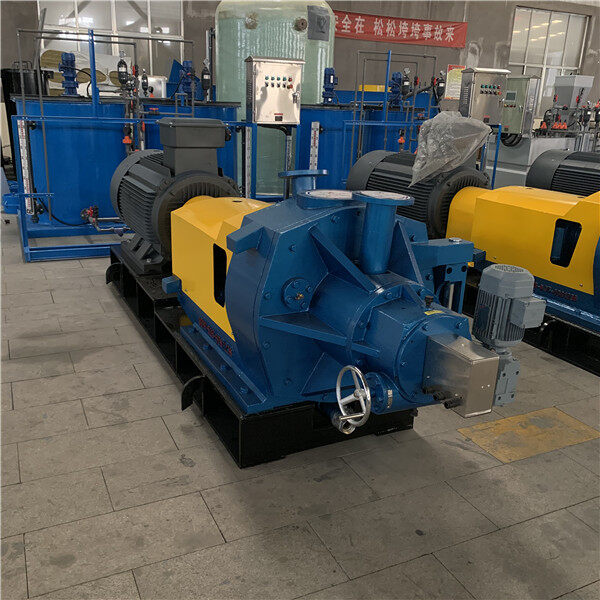

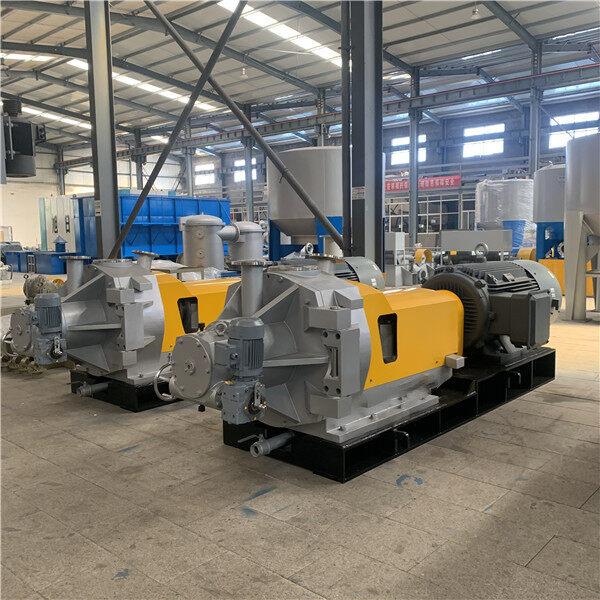

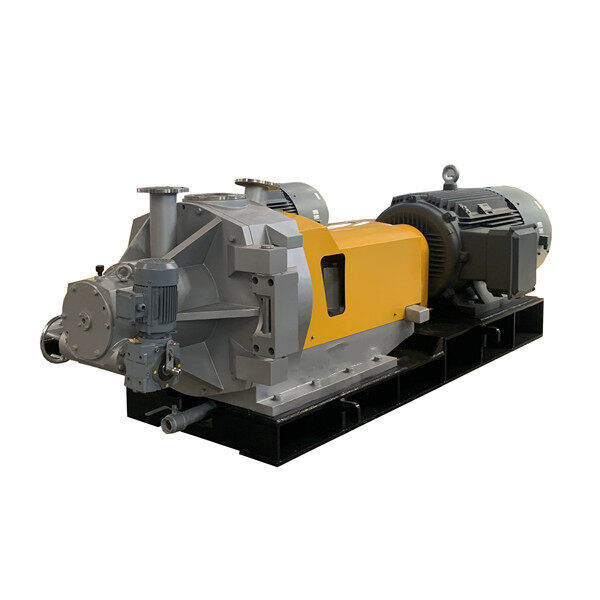

2 The double-disc refiner

It has the characteristics of small footprint, high production efficiency, low power consumption, convenient operation and easy maintenance. It is suitable for pulping and beating of various pulps, and it is an ideal pulping and beating equipment at present. According to the process requirements, the machine can be used alone or in series.

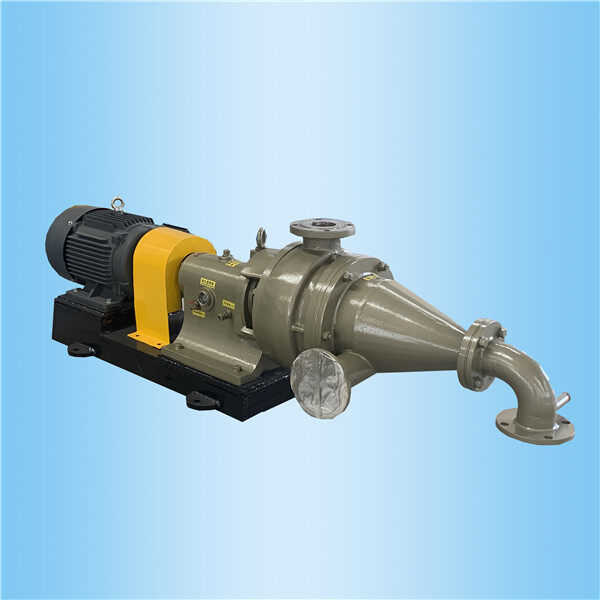

3 High-frequency deflaker

The machine can completely dissociate various fibers such as grass fibers, recycled fibers from waste paper, glass fibers, ceramic fibers and asbestos fibers, especially in the treatment of high wet strength waste paper, with excellent results and high processing efficiency.

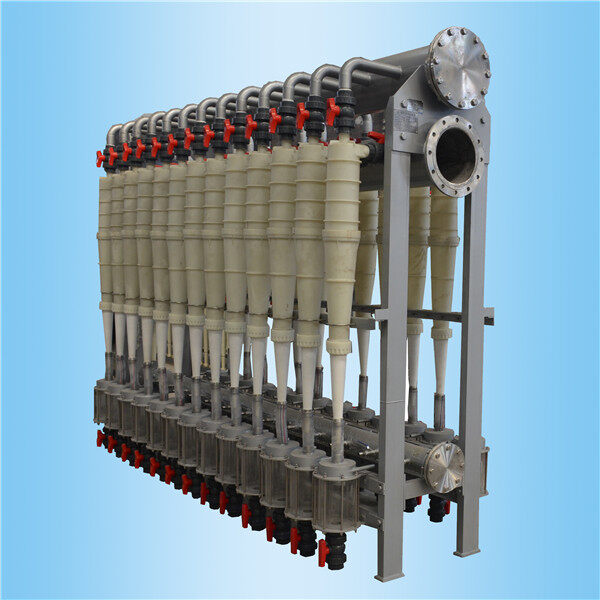

4 High-efficiency heavy slag remover

It is a positive slag remover that uses centrifugal principle to remove impurities in slurry. This product can be used in various slurry purification systems to remove sand, iron filings, dust and other fine heavy impurities in the slurry, and can also be used to remove larger ink particles in deinking systems.

The heavy slag cleaner can be combined with the light slag cleaner according to the difference of the slurry to achieve the ideal purification effect.
